Chapter 12 – Custom Models and Training with TensorFlow

This notebook contains all the sample code in chapter 12.

Setup

First, let’s import a few common modules, ensure MatplotLib plots figures inline and prepare a function to save the figures. We also check that Python 3.5 or later is installed (although Python 2.x may work, it is deprecated so we strongly recommend you use Python 3 instead), as well as Scikit-Learn ≥0.20 and TensorFlow ≥2.0.

# Python ≥3.5 is required
import sys
assert sys.version_info >= (3, 5)

# Scikit-Learn ≥0.20 is required
import sklearn
assert sklearn.__version__ >= "0.20"

try:
    # %tensorflow_version only exists in Colab.
    %tensorflow_version 2.x
except Exception:
    pass

# TensorFlow ≥2.4 is required in this notebook
# Earlier 2.x versions will mostly work the same, but with a few bugs
import tensorflow as tf
from tensorflow import keras
assert tf.__version__ >= "2.4"

# Common imports
import numpy as np
import os

# to make this notebook's output stable across runs
np.random.seed(42)
tf.random.set_seed(42)

# To plot pretty figures
%matplotlib inline
import matplotlib as mpl
import matplotlib.pyplot as plt
mpl.rc('axes', labelsize=14)
mpl.rc('xtick', labelsize=12)
mpl.rc('ytick', labelsize=12)

# Where to save the figures
PROJECT_ROOT_DIR = "."
CHAPTER_ID = "deep"
IMAGES_PATH = os.path.join(PROJECT_ROOT_DIR, "images", CHAPTER_ID)
os.makedirs(IMAGES_PATH, exist_ok=True)

def save_fig(fig_id, tight_layout=True, fig_extension="png", resolution=300):
    path = os.path.join(IMAGES_PATH, fig_id + "." + fig_extension)
    print("Saving figure", fig_id)
    if tight_layout:
        plt.tight_layout()
    plt.savefig(path, format=fig_extension, dpi=resolution)

Tensors and operations

Tensors

tf.constant([[1., 2., 3.], [4., 5., 6.]]) # matrix

<tf.Tensor: shape=(2, 3), dtype=float32, numpy=
array([[1., 2., 3.],
       [4., 5., 6.]], dtype=float32)>

tf.constant(42) # scalar

<tf.Tensor: shape=(), dtype=int32, numpy=42>

t = tf.constant([[1., 2., 3.], [4., 5., 6.]])
t

<tf.Tensor: shape=(2, 3), dtype=float32, numpy=
array([[1., 2., 3.],
       [4., 5., 6.]], dtype=float32)>

t.shape

TensorShape([2, 3])

t.dtype

tf.float32

Indexing

t[:, 1:]

<tf.Tensor: shape=(2, 2), dtype=float32, numpy=
array([[2., 3.],
       [5., 6.]], dtype=float32)>

t[..., 1, tf.newaxis]

<tf.Tensor: shape=(2, 1), dtype=float32, numpy=
array([[2.],
       [5.]], dtype=float32)>

Ops

t + 10

<tf.Tensor: shape=(2, 3), dtype=float32, numpy=
array([[11., 12., 13.],
       [14., 15., 16.]], dtype=float32)>

tf.square(t)

<tf.Tensor: shape=(2, 3), dtype=float32, numpy=
array([[ 1.,  4.,  9.],
       [16., 25., 36.]], dtype=float32)>

t @ tf.transpose(t)

<tf.Tensor: shape=(2, 2), dtype=float32, numpy=
array([[14., 32.],
       [32., 77.]], dtype=float32)>

Using keras.backend

from tensorflow import keras
K = keras.backend
K.square(K.transpose(t)) + 10

<tf.Tensor: shape=(3, 2), dtype=float32, numpy=
array([[11., 26.],
       [14., 35.],
       [19., 46.]], dtype=float32)>

From/To NumPy

a = np.array([2., 4., 5.])
tf.constant(a)

<tf.Tensor: shape=(3,), dtype=float64, numpy=array([2., 4., 5.])>

t.numpy()

array([[1., 2., 3.],
       [4., 5., 6.]], dtype=float32)

np.array(t)

array([[1., 2., 3.],
       [4., 5., 6.]], dtype=float32)

tf.square(a)

<tf.Tensor: shape=(3,), dtype=float64, numpy=array([ 4., 16., 25.])>

np.square(t)

array([[ 1.,  4.,  9.],
       [16., 25., 36.]], dtype=float32)

Conflicting Types

try:
    tf.constant(2.0) + tf.constant(40)
except tf.errors.InvalidArgumentError as ex:
    print(ex)

cannot compute AddV2 as input #1(zero-based) was expected to be a float tensor but is a int32 tensor [Op:AddV2]

try:
    tf.constant(2.0) + tf.constant(40., dtype=tf.float64)
except tf.errors.InvalidArgumentError as ex:
    print(ex)

cannot compute AddV2 as input #1(zero-based) was expected to be a float tensor but is a double tensor [Op:AddV2]

t2 = tf.constant(40., dtype=tf.float64)
tf.constant(2.0) + tf.cast(t2, tf.float32)

<tf.Tensor: shape=(), dtype=float32, numpy=42.0>

Strings

tf.constant(b"hello world")

<tf.Tensor: shape=(), dtype=string, numpy=b'hello world'>

tf.constant("café")

<tf.Tensor: shape=(), dtype=string, numpy=b'caf\xc3\xa9'>

u = tf.constant([ord(c) for c in "café"])
u

<tf.Tensor: shape=(4,), dtype=int32, numpy=array([ 99,  97, 102, 233], dtype=int32)>

b = tf.strings.unicode_encode(u, "UTF-8")
tf.strings.length(b, unit="UTF8_CHAR")

<tf.Tensor: shape=(), dtype=int32, numpy=4>

tf.strings.unicode_decode(b, "UTF-8")

<tf.Tensor: shape=(4,), dtype=int32, numpy=array([ 99,  97, 102, 233], dtype=int32)>

String arrays

p = tf.constant(["Café", "Coffee", "caffè", "咖啡"])

tf.strings.length(p, unit="UTF8_CHAR")

<tf.Tensor: shape=(4,), dtype=int32, numpy=array([4, 6, 5, 2], dtype=int32)>

r = tf.strings.unicode_decode(p, "UTF8")
r

<tf.RaggedTensor [[67, 97, 102, 233], [67, 111, 102, 102, 101, 101], [99, 97, 102, 102, 232], [21654, 21857]]>

print(r)

<tf.RaggedTensor [[67, 97, 102, 233], [67, 111, 102, 102, 101, 101], [99, 97, 102, 102, 232], [21654, 21857]]>

Ragged tensors

print(r[1])

tf.Tensor([ 67 111 102 102 101 101], shape=(6,), dtype=int32)

print(r[1:3])

<tf.RaggedTensor [[67, 111, 102, 102, 101, 101], [99, 97, 102, 102, 232]]>

r2 = tf.ragged.constant([[65, 66], [], [67]])
print(tf.concat([r, r2], axis=0))

<tf.RaggedTensor [[67, 97, 102, 233], [67, 111, 102, 102, 101, 101], [99, 97, 102, 102, 232], [21654, 21857], [65, 66], [], [67]]>

r3 = tf.ragged.constant([[68, 69, 70], [71], [], [72, 73]])
print(tf.concat([r, r3], axis=1))

<tf.RaggedTensor [[67, 97, 102, 233, 68, 69, 70], [67, 111, 102, 102, 101, 101, 71], [99, 97, 102, 102, 232], [21654, 21857, 72, 73]]>

tf.strings.unicode_encode(r3, "UTF-8")

<tf.Tensor: shape=(4,), dtype=string, numpy=array([b'DEF', b'G', b'', b'HI'], dtype=object)>

r.to_tensor()

<tf.Tensor: shape=(4, 6), dtype=int32, numpy=
array([[   67,    97,   102,   233,     0,     0],
       [   67,   111,   102,   102,   101,   101],
       [   99,    97,   102,   102,   232,     0],
       [21654, 21857,     0,     0,     0,     0]], dtype=int32)>

Sparse tensors

s = tf.SparseTensor(indices=[[0, 1], [1, 0], [2, 3]],
                    values=[1., 2., 3.],
                    dense_shape=[3, 4])

print(s)

SparseTensor(indices=tf.Tensor(
[[0 1]
 [1 0]
 [2 3]], shape=(3, 2), dtype=int64), values=tf.Tensor([1. 2. 3.], shape=(3,), dtype=float32), dense_shape=tf.Tensor([3 4], shape=(2,), dtype=int64))

tf.sparse.to_dense(s)

<tf.Tensor: shape=(3, 4), dtype=float32, numpy=
array([[0., 1., 0., 0.],
       [2., 0., 0., 0.],
       [0., 0., 0., 3.]], dtype=float32)>

s2 = s * 2.0

try:
    s3 = s + 1.
except TypeError as ex:
    print(ex)

unsupported operand type(s) for +: 'SparseTensor' and 'float'

s4 = tf.constant([[10., 20.], [30., 40.], [50., 60.], [70., 80.]])
tf.sparse.sparse_dense_matmul(s, s4)

<tf.Tensor: shape=(3, 2), dtype=float32, numpy=
array([[ 30.,  40.],
       [ 20.,  40.],
       [210., 240.]], dtype=float32)>

s5 = tf.SparseTensor(indices=[[0, 2], [0, 1]],
                     values=[1., 2.],
                     dense_shape=[3, 4])
print(s5)

SparseTensor(indices=tf.Tensor(
[[0 2]
 [0 1]], shape=(2, 2), dtype=int64), values=tf.Tensor([1. 2.], shape=(2,), dtype=float32), dense_shape=tf.Tensor([3 4], shape=(2,), dtype=int64))

try:
    tf.sparse.to_dense(s5)
except tf.errors.InvalidArgumentError as ex:
    print(ex)

indices[1] = [0,1] is out of order. Many sparse ops require sorted indices.
    Use `tf.sparse.reorder` to create a correctly ordered copy.

 [Op:SparseToDense]

s6 = tf.sparse.reorder(s5)
tf.sparse.to_dense(s6)

<tf.Tensor: shape=(3, 4), dtype=float32, numpy=
array([[0., 2., 1., 0.],
       [0., 0., 0., 0.],
       [0., 0., 0., 0.]], dtype=float32)>

Sets

set1 = tf.constant([[2, 3, 5, 7], [7, 9, 0, 0]])
set2 = tf.constant([[4, 5, 6], [9, 10, 0]])
tf.sparse.to_dense(tf.sets.union(set1, set2))

<tf.Tensor: shape=(2, 6), dtype=int32, numpy=
array([[ 2,  3,  4,  5,  6,  7],
       [ 0,  7,  9, 10,  0,  0]], dtype=int32)>

tf.sparse.to_dense(tf.sets.difference(set1, set2))

<tf.Tensor: shape=(2, 3), dtype=int32, numpy=
array([[2, 3, 7],
       [7, 0, 0]], dtype=int32)>

tf.sparse.to_dense(tf.sets.intersection(set1, set2))

<tf.Tensor: shape=(2, 2), dtype=int32, numpy=
array([[5, 0],
       [0, 9]], dtype=int32)>

Variables

v = tf.Variable([[1., 2., 3.], [4., 5., 6.]])

v.assign(2 * v)

<tf.Variable 'UnreadVariable' shape=(2, 3) dtype=float32, numpy=
array([[ 2.,  4.,  6.],
       [ 8., 10., 12.]], dtype=float32)>

v[0, 1].assign(42)

<tf.Variable 'UnreadVariable' shape=(2, 3) dtype=float32, numpy=
array([[ 2., 42.,  6.],
       [ 8., 10., 12.]], dtype=float32)>

v[:, 2].assign([0., 1.])

<tf.Variable 'UnreadVariable' shape=(2, 3) dtype=float32, numpy=
array([[ 2., 42.,  0.],
       [ 8., 10.,  1.]], dtype=float32)>

try:
    v[1] = [7., 8., 9.]
except TypeError as ex:
    print(ex)

'ResourceVariable' object does not support item assignment

v.scatter_nd_update(indices=[[0, 0], [1, 2]],
                    updates=[100., 200.])

<tf.Variable 'UnreadVariable' shape=(2, 3) dtype=float32, numpy=
array([[100.,  42.,   0.],
       [  8.,  10., 200.]], dtype=float32)>

sparse_delta = tf.IndexedSlices(values=[[1., 2., 3.], [4., 5., 6.]],
                                indices=[1, 0])
v.scatter_update(sparse_delta)

<tf.Variable 'UnreadVariable' shape=(2, 3) dtype=float32, numpy=
array([[4., 5., 6.],
       [1., 2., 3.]], dtype=float32)>

Tensor Arrays

array = tf.TensorArray(dtype=tf.float32, size=3)
array = array.write(0, tf.constant([1., 2.]))
array = array.write(1, tf.constant([3., 10.]))
array = array.write(2, tf.constant([5., 7.]))

array.read(1)

<tf.Tensor: shape=(2,), dtype=float32, numpy=array([ 3., 10.], dtype=float32)>

array.stack()

<tf.Tensor: shape=(3, 2), dtype=float32, numpy=
array([[1., 2.],
       [0., 0.],
       [5., 7.]], dtype=float32)>

mean, variance = tf.nn.moments(array.stack(), axes=0)
mean

<tf.Tensor: shape=(2,), dtype=float32, numpy=array([2., 3.], dtype=float32)>

variance

<tf.Tensor: shape=(2,), dtype=float32, numpy=array([4.6666665, 8.666667 ], dtype=float32)>

Custom loss function

Let’s start by loading and preparing the California housing dataset. We first load it, then split it into a training set, a validation set and a test set, and finally we scale it:

from sklearn.datasets import fetch_california_housing
from sklearn.model_selection import train_test_split
from sklearn.preprocessing import StandardScaler

housing = fetch_california_housing()
X_train_full, X_test, y_train_full, y_test = train_test_split(
    housing.data, housing.target.reshape(-1, 1), random_state=42)
X_train, X_valid, y_train, y_valid = train_test_split(
    X_train_full, y_train_full, random_state=42)

scaler = StandardScaler()
X_train_scaled = scaler.fit_transform(X_train)
X_valid_scaled = scaler.transform(X_valid)
X_test_scaled = scaler.transform(X_test)

def huber_fn(y_true, y_pred):
    error = y_true - y_pred
    is_small_error = tf.abs(error) < 1
    squared_loss = tf.square(error) / 2
    linear_loss  = tf.abs(error) - 0.5
    return tf.where(is_small_error, squared_loss, linear_loss)

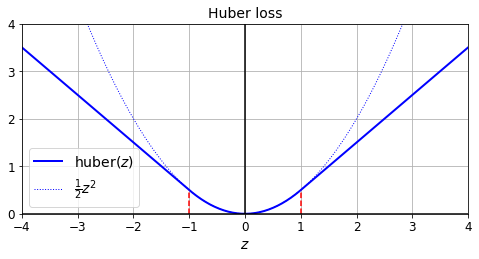

plt.figure(figsize=(8, 3.5))
z = np.linspace(-4, 4, 200)
plt.plot(z, huber_fn(0, z), "b-", linewidth=2, label="huber($z$)")
plt.plot(z, z**2 / 2, "b:", linewidth=1, label=r"$\frac{1}{2}z^2$")
plt.plot([-1, -1], [0, huber_fn(0., -1.)], "r--")
plt.plot([1, 1], [0, huber_fn(0., 1.)], "r--")
plt.gca().axhline(y=0, color='k')
plt.gca().axvline(x=0, color='k')
plt.axis([-4, 4, 0, 4])
plt.grid(True)
plt.xlabel("$z$")
plt.legend(fontsize=14)
plt.title("Huber loss", fontsize=14)
plt.show()

input_shape = X_train.shape[1:]

model = keras.models.Sequential([
    keras.layers.Dense(30, activation="selu", kernel_initializer="lecun_normal",
                       input_shape=input_shape),
    keras.layers.Dense(1),
])

model.compile(loss=huber_fn, optimizer="nadam", metrics=["mae"])

model.fit(X_train_scaled, y_train, epochs=2,
          validation_data=(X_valid_scaled, y_valid))

Epoch 1/2
363/363 [==============================] - 1s 2ms/step - loss: 1.0443 - mae: 1.4660 - val_loss: 0.2862 - val_mae: 0.5866
Epoch 2/2
363/363 [==============================] - 0s 737us/step - loss: 0.2379 - mae: 0.5407 - val_loss: 0.2382 - val_mae: 0.5281

<tensorflow.python.keras.callbacks.History at 0x7fc000dcc850>

Saving/Loading Models with Custom Objects

model.save("my_model_with_a_custom_loss.h5")

model = keras.models.load_model("my_model_with_a_custom_loss.h5",
                                custom_objects={"huber_fn": huber_fn})

model.fit(X_train_scaled, y_train, epochs=2,
          validation_data=(X_valid_scaled, y_valid))

Epoch 1/2
363/363 [==============================] - 1s 970us/step - loss: 0.2054 - mae: 0.4982 - val_loss: 0.2209 - val_mae: 0.5050
Epoch 2/2
363/363 [==============================] - 0s 769us/step - loss: 0.1999 - mae: 0.4900 - val_loss: 0.2127 - val_mae: 0.4986

<tensorflow.python.keras.callbacks.History at 0x7fbfd8c09090>

def create_huber(threshold=1.0):
    def huber_fn(y_true, y_pred):
        error = y_true - y_pred
        is_small_error = tf.abs(error) < threshold
        squared_loss = tf.square(error) / 2
        linear_loss  = threshold * tf.abs(error) - threshold**2 / 2
        return tf.where(is_small_error, squared_loss, linear_loss)
    return huber_fn

model.compile(loss=create_huber(2.0), optimizer="nadam", metrics=["mae"])

model.fit(X_train_scaled, y_train, epochs=2,
          validation_data=(X_valid_scaled, y_valid))

Epoch 1/2
363/363 [==============================] - 1s 1ms/step - loss: 0.2318 - mae: 0.4979 - val_loss: 0.2540 - val_mae: 0.4907
Epoch 2/2
363/363 [==============================] - 0s 749us/step - loss: 0.2309 - mae: 0.4960 - val_loss: 0.2372 - val_mae: 0.4879

<tensorflow.python.keras.callbacks.History at 0x7fbfd8c969d0>

model.save("my_model_with_a_custom_loss_threshold_2.h5")

model = keras.models.load_model("my_model_with_a_custom_loss_threshold_2.h5",
                                custom_objects={"huber_fn": create_huber(2.0)})

model.fit(X_train_scaled, y_train, epochs=2,
          validation_data=(X_valid_scaled, y_valid))

Epoch 1/2
363/363 [==============================] - 1s 1ms/step - loss: 0.2147 - mae: 0.4800 - val_loss: 0.2133 - val_mae: 0.4654
Epoch 2/2
363/363 [==============================] - 0s 763us/step - loss: 0.2119 - mae: 0.4762 - val_loss: 0.1992 - val_mae: 0.4643

<tensorflow.python.keras.callbacks.History at 0x7fbff7a0a590>

class HuberLoss(keras.losses.Loss):
    def __init__(self, threshold=1.0, **kwargs):
        self.threshold = threshold
        super().__init__(**kwargs)
    def call(self, y_true, y_pred):
        error = y_true - y_pred
        is_small_error = tf.abs(error) < self.threshold
        squared_loss = tf.square(error) / 2
        linear_loss  = self.threshold * tf.abs(error) - self.threshold**2 / 2
        return tf.where(is_small_error, squared_loss, linear_loss)
    def get_config(self):
        base_config = super().get_config()
        return {**base_config, "threshold": self.threshold}

model = keras.models.Sequential([
    keras.layers.Dense(30, activation="selu", kernel_initializer="lecun_normal",
                       input_shape=input_shape),
    keras.layers.Dense(1),
])

model.compile(loss=HuberLoss(2.), optimizer="nadam", metrics=["mae"])

model.fit(X_train_scaled, y_train, epochs=2,
          validation_data=(X_valid_scaled, y_valid))

Epoch 1/2
363/363 [==============================] - 1s 1ms/step - loss: 1.3123 - mae: 1.3345 - val_loss: 0.3378 - val_mae: 0.5485
Epoch 2/2
363/363 [==============================] - 0s 760us/step - loss: 0.2659 - mae: 0.5270 - val_loss: 0.2660 - val_mae: 0.5089

<tensorflow.python.keras.callbacks.History at 0x7fbfe06dad50>

model.save("my_model_with_a_custom_loss_class.h5")

model = keras.models.load_model("my_model_with_a_custom_loss_class.h5",
                                custom_objects={"HuberLoss": HuberLoss})

model.fit(X_train_scaled, y_train, epochs=2,
          validation_data=(X_valid_scaled, y_valid))

Epoch 1/2
363/363 [==============================] - 1s 966us/step - loss: 0.2286 - mae: 0.4970 - val_loss: 0.2120 - val_mae: 0.4723
Epoch 2/2
363/363 [==============================] - 0s 757us/step - loss: 0.2216 - mae: 0.4904 - val_loss: 0.2045 - val_mae: 0.4725

<tensorflow.python.keras.callbacks.History at 0x7fbfb0630d50>

model.loss.threshold

2.0

Other Custom Functions

keras.backend.clear_session()
np.random.seed(42)
tf.random.set_seed(42)

def my_softplus(z): # return value is just tf.nn.softplus(z)
    return tf.math.log(tf.exp(z) + 1.0)

def my_glorot_initializer(shape, dtype=tf.float32):
    stddev = tf.sqrt(2. / (shape[0] + shape[1]))
    return tf.random.normal(shape, stddev=stddev, dtype=dtype)

def my_l1_regularizer(weights):
    return tf.reduce_sum(tf.abs(0.01 * weights))

def my_positive_weights(weights): # return value is just tf.nn.relu(weights)
    return tf.where(weights < 0., tf.zeros_like(weights), weights)

layer = keras.layers.Dense(1, activation=my_softplus,
                           kernel_initializer=my_glorot_initializer,
                           kernel_regularizer=my_l1_regularizer,
                           kernel_constraint=my_positive_weights)

keras.backend.clear_session()
np.random.seed(42)
tf.random.set_seed(42)

model = keras.models.Sequential([
    keras.layers.Dense(30, activation="selu", kernel_initializer="lecun_normal",
                       input_shape=input_shape),
    keras.layers.Dense(1, activation=my_softplus,
                       kernel_regularizer=my_l1_regularizer,
                       kernel_constraint=my_positive_weights,
                       kernel_initializer=my_glorot_initializer),
])

model.compile(loss="mse", optimizer="nadam", metrics=["mae"])

model.fit(X_train_scaled, y_train, epochs=2,
          validation_data=(X_valid_scaled, y_valid))

Epoch 1/2
363/363 [==============================] - 1s 1ms/step - loss: 2.3829 - mae: 1.1635 - val_loss: 1.4154 - val_mae: 0.5607
Epoch 2/2
363/363 [==============================] - 0s 757us/step - loss: 0.6299 - mae: 0.5410 - val_loss: 1.4399 - val_mae: 0.5137

<tensorflow.python.keras.callbacks.History at 0x7fbfd8e49690>

model.save("my_model_with_many_custom_parts.h5")

model = keras.models.load_model(
    "my_model_with_many_custom_parts.h5",
    custom_objects={
       "my_l1_regularizer": my_l1_regularizer,
       "my_positive_weights": my_positive_weights,
       "my_glorot_initializer": my_glorot_initializer,
       "my_softplus": my_softplus,
    })

class MyL1Regularizer(keras.regularizers.Regularizer):
    def __init__(self, factor):
        self.factor = factor
    def __call__(self, weights):
        return tf.reduce_sum(tf.abs(self.factor * weights))
    def get_config(self):
        return {"factor": self.factor}

keras.backend.clear_session()
np.random.seed(42)
tf.random.set_seed(42)

model = keras.models.Sequential([
    keras.layers.Dense(30, activation="selu", kernel_initializer="lecun_normal",
                       input_shape=input_shape),
    keras.layers.Dense(1, activation=my_softplus,
                       kernel_regularizer=MyL1Regularizer(0.01),
                       kernel_constraint=my_positive_weights,
                       kernel_initializer=my_glorot_initializer),
])

model.compile(loss="mse", optimizer="nadam", metrics=["mae"])

model.fit(X_train_scaled, y_train, epochs=2,
          validation_data=(X_valid_scaled, y_valid))

Epoch 1/2
363/363 [==============================] - 1s 1ms/step - loss: 2.3829 - mae: 1.1635 - val_loss: 1.4154 - val_mae: 0.5607
Epoch 2/2
363/363 [==============================] - 0s 757us/step - loss: 0.6299 - mae: 0.5410 - val_loss: 1.4399 - val_mae: 0.5137

<tensorflow.python.keras.callbacks.History at 0x7fbfd90141d0>

model.save("my_model_with_many_custom_parts.h5")

model = keras.models.load_model(
    "my_model_with_many_custom_parts.h5",
    custom_objects={
       "MyL1Regularizer": MyL1Regularizer,
       "my_positive_weights": my_positive_weights,
       "my_glorot_initializer": my_glorot_initializer,
       "my_softplus": my_softplus,
    })

Custom Metrics

keras.backend.clear_session()
np.random.seed(42)
tf.random.set_seed(42)

model = keras.models.Sequential([
    keras.layers.Dense(30, activation="selu", kernel_initializer="lecun_normal",
                       input_shape=input_shape),
    keras.layers.Dense(1),
])

model.compile(loss="mse", optimizer="nadam", metrics=[create_huber(2.0)])

model.fit(X_train_scaled, y_train, epochs=2)

Epoch 1/2
363/363 [==============================] - 1s 572us/step - loss: 3.5903 - huber_fn: 1.5558
Epoch 2/2
363/363 [==============================] - 0s 552us/step - loss: 0.8054 - huber_fn: 0.3095

<tensorflow.python.keras.callbacks.History at 0x7fbff7cbe850>

Note: if you use the same function as the loss and a metric, you may be surprised to see different results. This is generally just due to floating point precision errors: even though the mathematical equations are equivalent, the operations are not run in the same order, which can lead to small differences. Moreover, when using sample weights, there’s more than just precision errors:

• the loss since the start of the epoch is the mean of all batch losses seen so far. Each batch loss is the sum of the weighted instance losses divided by the batch size (not the sum of weights, so the batch loss is not the weighted mean of the losses).

• the metric since the start of the epoch is equal to the sum of weighted instance losses divided by sum of all weights seen so far. In other words, it is the weighted mean of all the instance losses. Not the same thing.

If you do the math, you will find that loss = metric * mean of sample weights (plus some floating point precision error).

model.compile(loss=create_huber(2.0), optimizer="nadam", metrics=[create_huber(2.0)])

sample_weight = np.random.rand(len(y_train))
history = model.fit(X_train_scaled, y_train, epochs=2, sample_weight=sample_weight)

Epoch 1/2
363/363 [==============================] - 1s 598us/step - loss: 0.1245 - huber_fn: 0.2515
Epoch 2/2
363/363 [==============================] - 0s 558us/step - loss: 0.1216 - huber_fn: 0.2473

history.history["loss"][0], history.history["huber_fn"][0] * sample_weight.mean()

(0.11749906837940216, 0.11906625573138947)

Streaming metrics

precision = keras.metrics.Precision()
precision([0, 1, 1, 1, 0, 1, 0, 1], [1, 1, 0, 1, 0, 1, 0, 1])

<tf.Tensor: shape=(), dtype=float32, numpy=0.8>

precision([0, 1, 0, 0, 1, 0, 1, 1], [1, 0, 1, 1, 0, 0, 0, 0])

<tf.Tensor: shape=(), dtype=float32, numpy=0.5>

precision.result()

<tf.Tensor: shape=(), dtype=float32, numpy=0.5>

precision.variables

[<tf.Variable 'true_positives:0' shape=(1,) dtype=float32, numpy=array([4.], dtype=float32)>,
 <tf.Variable 'false_positives:0' shape=(1,) dtype=float32, numpy=array([4.], dtype=float32)>]

precision.reset_states()

Creating a streaming metric:

class HuberMetric(keras.metrics.Metric):
    def __init__(self, threshold=1.0, **kwargs):
        super().__init__(**kwargs) # handles base args (e.g., dtype)
        self.threshold = threshold
        self.huber_fn = create_huber(threshold)
        self.total = self.add_weight("total", initializer="zeros")
        self.count = self.add_weight("count", initializer="zeros")
    def update_state(self, y_true, y_pred, sample_weight=None):
        metric = self.huber_fn(y_true, y_pred)
        self.total.assign_add(tf.reduce_sum(metric))
        self.count.assign_add(tf.cast(tf.size(y_true), tf.float32))
    def result(self):
        return self.total / self.count
    def get_config(self):
        base_config = super().get_config()
        return {**base_config, "threshold": self.threshold}

m = HuberMetric(2.)

# total = 2 * |10 - 2| - 2²/2 = 14
# count = 1
# result = 14 / 1 = 14
m(tf.constant([[2.]]), tf.constant([[10.]]))

<tf.Tensor: shape=(), dtype=float32, numpy=14.0>

# total = total + (|1 - 0|² / 2) + (2 * |9.25 - 5| - 2² / 2) = 14 + 7 = 21
# count = count + 2 = 3
# result = total / count = 21 / 3 = 7
m(tf.constant([[0.], [5.]]), tf.constant([[1.], [9.25]]))

m.result()

<tf.Tensor: shape=(), dtype=float32, numpy=7.0>

m.variables

[<tf.Variable 'total:0' shape=() dtype=float32, numpy=21.0>,
 <tf.Variable 'count:0' shape=() dtype=float32, numpy=3.0>]

m.reset_states()
m.variables

[<tf.Variable 'total:0' shape=() dtype=float32, numpy=0.0>,
 <tf.Variable 'count:0' shape=() dtype=float32, numpy=0.0>]

Let’s check that the HuberMetric class works well:

keras.backend.clear_session()
np.random.seed(42)
tf.random.set_seed(42)

model = keras.models.Sequential([
    keras.layers.Dense(30, activation="selu", kernel_initializer="lecun_normal",
                       input_shape=input_shape),
    keras.layers.Dense(1),
])

model.compile(loss=create_huber(2.0), optimizer="nadam", metrics=[HuberMetric(2.0)])

model.fit(X_train_scaled.astype(np.float32), y_train.astype(np.float32), epochs=2)

Epoch 1/2
363/363 [==============================] - 1s 592us/step - loss: 1.5182 - huber_metric: 1.5182
Epoch 2/2
363/363 [==============================] - 0s 538us/step - loss: 0.2909 - huber_metric: 0.2909

<tensorflow.python.keras.callbacks.History at 0x7fc000fdfbd0>

model.save("my_model_with_a_custom_metric.h5")

model = keras.models.load_model("my_model_with_a_custom_metric.h5",
                                custom_objects={"huber_fn": create_huber(2.0),
                                                "HuberMetric": HuberMetric})

model.fit(X_train_scaled.astype(np.float32), y_train.astype(np.float32), epochs=2)

Epoch 1/2
363/363 [==============================] - 0s 545us/step - loss: 0.2350 - huber_metric: 0.2350
Epoch 2/2
363/363 [==============================] - 0s 524us/step - loss: 0.2278 - huber_metric: 0.2278

<tensorflow.python.keras.callbacks.History at 0x7fc0011c1a50>

Warning: In TF 2.2, tf.keras adds an extra first metric in model.metrics at position 0 (see TF issue #38150). This forces us to use model.metrics[-1] rather than model.metrics[0] to access the HuberMetric.

model.metrics[-1].threshold

2.0

Looks like it works fine! More simply, we could have created the class like this:

class HuberMetric(keras.metrics.Mean):
    def __init__(self, threshold=1.0, name='HuberMetric', dtype=None):
        self.threshold = threshold
        self.huber_fn = create_huber(threshold)
        super().__init__(name=name, dtype=dtype)
    def update_state(self, y_true, y_pred, sample_weight=None):
        metric = self.huber_fn(y_true, y_pred)
        super(HuberMetric, self).update_state(metric, sample_weight)
    def get_config(self):
        base_config = super().get_config()
        return {**base_config, "threshold": self.threshold}

This class handles shapes better, and it also supports sample weights.

keras.backend.clear_session()
np.random.seed(42)
tf.random.set_seed(42)

model = keras.models.Sequential([
    keras.layers.Dense(30, activation="selu", kernel_initializer="lecun_normal",
                       input_shape=input_shape),
    keras.layers.Dense(1),
])

model.compile(loss=keras.losses.Huber(2.0), optimizer="nadam", weighted_metrics=[HuberMetric(2.0)])

sample_weight = np.random.rand(len(y_train))
history = model.fit(X_train_scaled.astype(np.float32), y_train.astype(np.float32),
                    epochs=2, sample_weight=sample_weight)

Epoch 1/2
363/363 [==============================] - 1s 627us/step - loss: 0.7800 - HuberMetric: 1.5672
Epoch 2/2
363/363 [==============================] - 0s 607us/step - loss: 0.1462 - HuberMetric: 0.2939

history.history["loss"][0], history.history["HuberMetric"][0] * sample_weight.mean()

(0.44554394483566284, 0.44554404180100277)

model.save("my_model_with_a_custom_metric_v2.h5")

model = keras.models.load_model("my_model_with_a_custom_metric_v2.h5",
                                custom_objects={"HuberMetric": HuberMetric})

model.fit(X_train_scaled.astype(np.float32), y_train.astype(np.float32), epochs=2)

Epoch 1/2
363/363 [==============================] - 0s 578us/step - loss: 0.2377 - HuberMetric: 0.2377
Epoch 2/2
363/363 [==============================] - 0s 559us/step - loss: 0.2279 - HuberMetric: 0.2279

<tensorflow.python.keras.callbacks.History at 0x7fbfb052b150>

model.metrics[-1].threshold

2.0

Custom Layers

exponential_layer = keras.layers.Lambda(lambda x: tf.exp(x))

exponential_layer([-1., 0., 1.])

<tf.Tensor: shape=(3,), dtype=float32, numpy=array([0.36787945, 1.        , 2.7182817 ], dtype=float32)>

Adding an exponential layer at the output of a regression model can be useful if the values to predict are positive and with very different scales (e.g., 0.001, 10., 10000):

keras.backend.clear_session()
np.random.seed(42)
tf.random.set_seed(42)

model = keras.models.Sequential([
    keras.layers.Dense(30, activation="relu", input_shape=input_shape),
    keras.layers.Dense(1),
    exponential_layer
])
model.compile(loss="mse", optimizer="sgd")
model.fit(X_train_scaled, y_train, epochs=5,
          validation_data=(X_valid_scaled, y_valid))
model.evaluate(X_test_scaled, y_test)

Epoch 1/5
363/363 [==============================] - 0s 828us/step - loss: 2.1275 - val_loss: 0.4457
Epoch 2/5
363/363 [==============================] - 0s 645us/step - loss: 0.4750 - val_loss: 0.3798
Epoch 3/5
363/363 [==============================] - 0s 656us/step - loss: 0.4230 - val_loss: 0.3548
Epoch 4/5
363/363 [==============================] - 0s 657us/step - loss: 0.3905 - val_loss: 0.3464
Epoch 5/5
363/363 [==============================] - 0s 664us/step - loss: 0.3784 - val_loss: 0.3449
162/162 [==============================] - 0s 420us/step - loss: 0.3586

0.3586340546607971

class MyDense(keras.layers.Layer):
    def __init__(self, units, activation=None, **kwargs):
        super().__init__(**kwargs)
        self.units = units
        self.activation = keras.activations.get(activation)

    def build(self, batch_input_shape):
        self.kernel = self.add_weight(
            name="kernel", shape=[batch_input_shape[-1], self.units],
            initializer="glorot_normal")
        self.bias = self.add_weight(
            name="bias", shape=[self.units], initializer="zeros")
        super().build(batch_input_shape) # must be at the end

    def call(self, X):
        return self.activation(X @ self.kernel + self.bias)

    def compute_output_shape(self, batch_input_shape):
        return tf.TensorShape(batch_input_shape.as_list()[:-1] + [self.units])

    def get_config(self):
        base_config = super().get_config()
        return {**base_config, "units": self.units,
                "activation": keras.activations.serialize(self.activation)}

keras.backend.clear_session()
np.random.seed(42)
tf.random.set_seed(42)

model = keras.models.Sequential([
    MyDense(30, activation="relu", input_shape=input_shape),
    MyDense(1)
])

model.compile(loss="mse", optimizer="nadam")
model.fit(X_train_scaled, y_train, epochs=2,
          validation_data=(X_valid_scaled, y_valid))
model.evaluate(X_test_scaled, y_test)

Epoch 1/2
363/363 [==============================] - 1s 898us/step - loss: 4.1268 - val_loss: 0.9472
Epoch 2/2
363/363 [==============================] - 0s 707us/step - loss: 0.7086 - val_loss: 0.6219
162/162 [==============================] - 0s 419us/step - loss: 0.5474

0.5473727583885193

model.save("my_model_with_a_custom_layer.h5")

model = keras.models.load_model("my_model_with_a_custom_layer.h5",
                                custom_objects={"MyDense": MyDense})

class MyMultiLayer(keras.layers.Layer):
    def call(self, X):
        X1, X2 = X
        print("X1.shape: ", X1.shape ," X2.shape: ", X2.shape) # Debugging of custom layer
        return X1 + X2, X1 * X2

    def compute_output_shape(self, batch_input_shape):
        batch_input_shape1, batch_input_shape2 = batch_input_shape
        return [batch_input_shape1, batch_input_shape2]

Our custom layer can be called using the functional API like this:

inputs1 = keras.layers.Input(shape=[2])
inputs2 = keras.layers.Input(shape=[2])
outputs1, outputs2 = MyMultiLayer()((inputs1, inputs2))

X1.shape:  (None, 2)  X2.shape:  (None, 2)

Note that the call() method receives symbolic inputs, whose shape is only partially specified (at this stage, we don’t know the batch size, which is why the first dimension is None):

We can also pass actual data to the custom layer. To test this, let’s split each dataset’s inputs into two parts, with four features each:

def split_data(data):
    columns_count = data.shape[-1]
    half = columns_count // 2
    return data[:, :half], data[:, half:]

X_train_scaled_A, X_train_scaled_B = split_data(X_train_scaled)
X_valid_scaled_A, X_valid_scaled_B = split_data(X_valid_scaled)
X_test_scaled_A, X_test_scaled_B = split_data(X_test_scaled)

# Printing the splitted data shapes
X_train_scaled_A.shape, X_train_scaled_B.shape

((11610, 4), (11610, 4))

Now notice that the shapes are fully specified:

outputs1, outputs2 = MyMultiLayer()((X_train_scaled_A, X_train_scaled_B))

X1.shape:  (11610, 4)  X2.shape:  (11610, 4)

Let’s build a more complete model using the functional API (this is just a toy example, don’t expect awesome performance):

keras.backend.clear_session()
np.random.seed(42)
tf.random.set_seed(42)

input_A = keras.layers.Input(shape=X_train_scaled_A.shape[-1])
input_B = keras.layers.Input(shape=X_train_scaled_B.shape[-1])
hidden_A, hidden_B = MyMultiLayer()((input_A, input_B))
hidden_A = keras.layers.Dense(30, activation='selu')(hidden_A)
hidden_B = keras.layers.Dense(30, activation='selu')(hidden_B)
concat = keras.layers.Concatenate()((hidden_A, hidden_B))
output = keras.layers.Dense(1)(concat)
model = keras.models.Model(inputs=[input_A, input_B], outputs=[output])

X1.shape:  (None, 4)  X2.shape:  (None, 4)

model.compile(loss='mse', optimizer='nadam')

model.fit((X_train_scaled_A, X_train_scaled_B), y_train, epochs=2,
          validation_data=((X_valid_scaled_A, X_valid_scaled_B), y_valid))

Epoch 1/2
X1.shape:  (None, 4)  X2.shape:  (None, 4)
X1.shape:  (None, 4)  X2.shape:  (None, 4)
356/363 [============================>.] - ETA: 0s - loss: 3.6305X1.shape:  (None, 4)  X2.shape:  (None, 4)
363/363 [==============================] - 1s 1ms/step - loss: 3.5973 - val_loss: 1.3630
Epoch 2/2
363/363 [==============================] - 0s 1ms/step - loss: 1.0132 - val_loss: 0.9773

<tensorflow.python.keras.callbacks.History at 0x7fddd0cb4bd0>

Now let’s create a layer with a different behavior during training and testing:

class AddGaussianNoise(keras.layers.Layer):
    def __init__(self, stddev, **kwargs):
        super().__init__(**kwargs)
        self.stddev = stddev

    def call(self, X, training=None):
        if training:
            noise = tf.random.normal(tf.shape(X), stddev=self.stddev)
            return X + noise
        else:
            return X

    def compute_output_shape(self, batch_input_shape):
        return batch_input_shape

Here’s a simple model that uses this custom layer:

keras.backend.clear_session()
np.random.seed(42)
tf.random.set_seed(42)

model = keras.models.Sequential([
    AddGaussianNoise(stddev=1.0),
    keras.layers.Dense(30, activation="selu"),
    keras.layers.Dense(1)
])

model.compile(loss="mse", optimizer="nadam")
model.fit(X_train_scaled, y_train, epochs=2,
          validation_data=(X_valid_scaled, y_valid))
model.evaluate(X_test_scaled, y_test)

Epoch 1/2
363/363 [==============================] - 1s 892us/step - loss: 3.7869 - val_loss: 7.6082
Epoch 2/2
363/363 [==============================] - 0s 685us/step - loss: 1.2375 - val_loss: 4.4597
162/162 [==============================] - 0s 416us/step - loss: 0.7560

0.7559615969657898

Custom Models

X_new_scaled = X_test_scaled

class ResidualBlock(keras.layers.Layer):
    def __init__(self, n_layers, n_neurons, **kwargs):
        super().__init__(**kwargs)
        self.hidden = [keras.layers.Dense(n_neurons, activation="elu",
                                          kernel_initializer="he_normal")
                       for _ in range(n_layers)]

    def call(self, inputs):
        Z = inputs
        for layer in self.hidden:
            Z = layer(Z)
        return inputs + Z

class ResidualRegressor(keras.models.Model):
    def __init__(self, output_dim, **kwargs):
        super().__init__(**kwargs)
        self.hidden1 = keras.layers.Dense(30, activation="elu",
                                          kernel_initializer="he_normal")
        self.block1 = ResidualBlock(2, 30)
        self.block2 = ResidualBlock(2, 30)
        self.out = keras.layers.Dense(output_dim)

    def call(self, inputs):
        Z = self.hidden1(inputs)
        for _ in range(1 + 3):
            Z = self.block1(Z)
        Z = self.block2(Z)
        return self.out(Z)

keras.backend.clear_session()
np.random.seed(42)
tf.random.set_seed(42)

model = ResidualRegressor(1)
model.compile(loss="mse", optimizer="nadam")
history = model.fit(X_train_scaled, y_train, epochs=5)
score = model.evaluate(X_test_scaled, y_test)
y_pred = model.predict(X_new_scaled)

Epoch 1/5
363/363 [==============================] - 1s 837us/step - loss: 22.7478
Epoch 2/5
363/363 [==============================] - 0s 739us/step - loss: 1.2735
Epoch 3/5
363/363 [==============================] - 0s 737us/step - loss: 0.9792
Epoch 4/5
363/363 [==============================] - 0s 740us/step - loss: 0.5905
Epoch 5/5
363/363 [==============================] - 0s 739us/step - loss: 0.5544
162/162 [==============================] - 0s 526us/step - loss: 0.6513

model.save("my_custom_model.ckpt")

WARNING:absl:Found untraced functions such as dense_1_layer_call_and_return_conditional_losses, dense_1_layer_call_fn, dense_2_layer_call_and_return_conditional_losses, dense_2_layer_call_fn, dense_3_layer_call_and_return_conditional_losses while saving (showing 5 of 20). These functions will not be directly callable after loading.
WARNING:absl:Found untraced functions such as dense_1_layer_call_and_return_conditional_losses, dense_1_layer_call_fn, dense_2_layer_call_and_return_conditional_losses, dense_2_layer_call_fn, dense_3_layer_call_and_return_conditional_losses while saving (showing 5 of 20). These functions will not be directly callable after loading.

INFO:tensorflow:Assets written to: my_custom_model.ckpt/assets

INFO:tensorflow:Assets written to: my_custom_model.ckpt/assets

model = keras.models.load_model("my_custom_model.ckpt")

history = model.fit(X_train_scaled, y_train, epochs=5)

Epoch 1/5
363/363 [==============================] - 1s 851us/step - loss: 0.9476
Epoch 2/5
363/363 [==============================] - 0s 736us/step - loss: 0.6998
Epoch 3/5
363/363 [==============================] - 0s 737us/step - loss: 0.4668
Epoch 4/5
363/363 [==============================] - 0s 758us/step - loss: 0.4818
Epoch 5/5
363/363 [==============================] - 0s 756us/step - loss: 0.4591

We could have defined the model using the sequential API instead:

keras.backend.clear_session()
np.random.seed(42)
tf.random.set_seed(42)

block1 = ResidualBlock(2, 30)
model = keras.models.Sequential([
    keras.layers.Dense(30, activation="elu", kernel_initializer="he_normal"),
    block1, block1, block1, block1,
    ResidualBlock(2, 30),
    keras.layers.Dense(1)
])

model.compile(loss="mse", optimizer="nadam")
history = model.fit(X_train_scaled, y_train, epochs=5)
score = model.evaluate(X_test_scaled, y_test)
y_pred = model.predict(X_new_scaled)

Epoch 1/5
363/363 [==============================] - 1s 709us/step - loss: 1.5508
Epoch 2/5
363/363 [==============================] - 0s 645us/step - loss: 0.5562
Epoch 3/5
363/363 [==============================] - 0s 625us/step - loss: 0.6406
Epoch 4/5
363/363 [==============================] - 0s 636us/step - loss: 0.3759
Epoch 5/5
363/363 [==============================] - 0s 623us/step - loss: 0.3875
162/162 [==============================] - 0s 463us/step - loss: 0.4852

Losses and Metrics Based on Model Internals

Note: the following code has two differences with the code in the book:

1. It creates a keras.metrics.Mean() metric in the constructor and uses it in the call() method to track the mean reconstruction loss. Since we only want to do this during training, we add a training argument to the call() method, and if training is True, then we update reconstruction_mean and we call self.add_metric() to ensure it’s displayed properly.

2. Due to an issue introduced in TF 2.2 (#46858), we must not call super().build() inside the build() method.

class ReconstructingRegressor(keras.Model):
    def __init__(self, output_dim, **kwargs):
        super().__init__(**kwargs)
        self.hidden = [keras.layers.Dense(30, activation="selu",
                                          kernel_initializer="lecun_normal")
                       for _ in range(5)]
        self.out = keras.layers.Dense(output_dim)
        self.reconstruction_mean = keras.metrics.Mean(name="reconstruction_error")

    def build(self, batch_input_shape):
        n_inputs = batch_input_shape[-1]
        self.reconstruct = keras.layers.Dense(n_inputs)
        #super().build(batch_input_shape)

    def call(self, inputs, training=None):
        Z = inputs
        for layer in self.hidden:
            Z = layer(Z)
        reconstruction = self.reconstruct(Z)
        recon_loss = tf.reduce_mean(tf.square(reconstruction - inputs))
        self.add_loss(0.05 * recon_loss)
        if training:
            result = self.reconstruction_mean(recon_loss)
            self.add_metric(result)
        return self.out(Z)

keras.backend.clear_session()
np.random.seed(42)
tf.random.set_seed(42)

model = ReconstructingRegressor(1)
model.compile(loss="mse", optimizer="nadam")
history = model.fit(X_train_scaled, y_train, epochs=2)
y_pred = model.predict(X_test_scaled)

Epoch 1/2
363/363 [==============================] - 1s 810us/step - loss: 1.6313 - reconstruction_error: 1.0474
Epoch 2/2
363/363 [==============================] - 0s 683us/step - loss: 0.4536 - reconstruction_error: 0.4022

Computing Gradients with Autodiff

def f(w1, w2):
    return 3 * w1 ** 2 + 2 * w1 * w2

w1, w2 = 5, 3
eps = 1e-6
(f(w1 + eps, w2) - f(w1, w2)) / eps

36.000003007075065

(f(w1, w2 + eps) - f(w1, w2)) / eps

10.000000003174137

w1, w2 = tf.Variable(5.), tf.Variable(3.)
with tf.GradientTape() as tape:
    z = f(w1, w2)

gradients = tape.gradient(z, [w1, w2])

gradients

[<tf.Tensor: shape=(), dtype=float32, numpy=36.0>,
 <tf.Tensor: shape=(), dtype=float32, numpy=10.0>]

with tf.GradientTape() as tape:
    z = f(w1, w2)

dz_dw1 = tape.gradient(z, w1)
try:
    dz_dw2 = tape.gradient(z, w2)
except RuntimeError as ex:
    print(ex)

A non-persistent GradientTape can only be used tocompute one set of gradients (or jacobians)

with tf.GradientTape(persistent=True) as tape:
    z = f(w1, w2)

dz_dw1 = tape.gradient(z, w1)
dz_dw2 = tape.gradient(z, w2) # works now!
del tape

dz_dw1, dz_dw2

(<tf.Tensor: shape=(), dtype=float32, numpy=36.0>,
 <tf.Tensor: shape=(), dtype=float32, numpy=10.0>)

c1, c2 = tf.constant(5.), tf.constant(3.)
with tf.GradientTape() as tape:
    z = f(c1, c2)

gradients = tape.gradient(z, [c1, c2])

gradients

[None, None]

with tf.GradientTape() as tape:
    tape.watch(c1)
    tape.watch(c2)
    z = f(c1, c2)

gradients = tape.gradient(z, [c1, c2])

gradients

[<tf.Tensor: shape=(), dtype=float32, numpy=36.0>,
 <tf.Tensor: shape=(), dtype=float32, numpy=10.0>]

with tf.GradientTape() as tape:
    z1 = f(w1, w2 + 2.)
    z2 = f(w1, w2 + 5.)
    z3 = f(w1, w2 + 7.)

tape.gradient([z1, z2, z3], [w1, w2])

[<tf.Tensor: shape=(), dtype=float32, numpy=136.0>,
 <tf.Tensor: shape=(), dtype=float32, numpy=30.0>]

with tf.GradientTape(persistent=True) as tape:
    z1 = f(w1, w2 + 2.)
    z2 = f(w1, w2 + 5.)
    z3 = f(w1, w2 + 7.)

tf.reduce_sum(tf.stack([tape.gradient(z, [w1, w2]) for z in (z1, z2, z3)]), axis=0)
del tape

with tf.GradientTape(persistent=True) as hessian_tape:
    with tf.GradientTape() as jacobian_tape:
        z = f(w1, w2)
    jacobians = jacobian_tape.gradient(z, [w1, w2])
hessians = [hessian_tape.gradient(jacobian, [w1, w2])
            for jacobian in jacobians]
del hessian_tape

jacobians

[<tf.Tensor: shape=(), dtype=float32, numpy=36.0>,
 <tf.Tensor: shape=(), dtype=float32, numpy=10.0>]

hessians

[[<tf.Tensor: shape=(), dtype=float32, numpy=6.0>,
  <tf.Tensor: shape=(), dtype=float32, numpy=2.0>],
 [<tf.Tensor: shape=(), dtype=float32, numpy=2.0>, None]]

def f(w1, w2):
    return 3 * w1 ** 2 + tf.stop_gradient(2 * w1 * w2)

with tf.GradientTape() as tape:
    z = f(w1, w2)

tape.gradient(z, [w1, w2])

[<tf.Tensor: shape=(), dtype=float32, numpy=30.0>, None]

x = tf.Variable(100.)
with tf.GradientTape() as tape:
    z = my_softplus(x)

tape.gradient(z, [x])

[<tf.Tensor: shape=(), dtype=float32, numpy=nan>]

tf.math.log(tf.exp(tf.constant(30., dtype=tf.float32)) + 1.)

<tf.Tensor: shape=(), dtype=float32, numpy=30.0>

x = tf.Variable([100.])
with tf.GradientTape() as tape:
    z = my_softplus(x)

tape.gradient(z, [x])

[<tf.Tensor: shape=(1,), dtype=float32, numpy=array([nan], dtype=float32)>]

@tf.custom_gradient
def my_better_softplus(z):
    exp = tf.exp(z)
    def my_softplus_gradients(grad):
        return grad / (1 + 1 / exp)
    return tf.math.log(exp + 1), my_softplus_gradients

def my_better_softplus(z):
    return tf.where(z > 30., z, tf.math.log(tf.exp(z) + 1.))

x = tf.Variable([1000.])
with tf.GradientTape() as tape:
    z = my_better_softplus(x)

z, tape.gradient(z, [x])

(<tf.Tensor: shape=(1,), dtype=float32, numpy=array([1000.], dtype=float32)>,
 [<tf.Tensor: shape=(1,), dtype=float32, numpy=array([nan], dtype=float32)>])

Computing Gradients Using Autodiff

keras.backend.clear_session()
np.random.seed(42)
tf.random.set_seed(42)

l2_reg = keras.regularizers.l2(0.05)
model = keras.models.Sequential([
    keras.layers.Dense(30, activation="elu", kernel_initializer="he_normal",
                       kernel_regularizer=l2_reg),
    keras.layers.Dense(1, kernel_regularizer=l2_reg)
])

def random_batch(X, y, batch_size=32):
    idx = np.random.randint(len(X), size=batch_size)
    return X[idx], y[idx]

def print_status_bar(iteration, total, loss, metrics=None):
    metrics = " - ".join(["{}: {:.4f}".format(m.name, m.result())
                         for m in [loss] + (metrics or [])])
    end = "" if iteration < total else "\n"
    print("\r{}/{} - ".format(iteration, total) + metrics,
          end=end)

import time

mean_loss = keras.metrics.Mean(name="loss")
mean_square = keras.metrics.Mean(name="mean_square")
for i in range(1, 50 + 1):
    loss = 1 / i
    mean_loss(loss)
    mean_square(i ** 2)
    print_status_bar(i, 50, mean_loss, [mean_square])
    time.sleep(0.05)

50/50 - loss: 0.0900 - mean_square: 858.5000

A fancier version with a progress bar:

def progress_bar(iteration, total, size=30):
    running = iteration < total
    c = ">" if running else "="
    p = (size - 1) * iteration // total
    fmt = "{{:-{}d}}/{{}} [{{}}]".format(len(str(total)))
    params = [iteration, total, "=" * p + c + "." * (size - p - 1)]
    return fmt.format(*params)

progress_bar(3500, 10000, size=6)

' 3500/10000 [=>....]'

def print_status_bar(iteration, total, loss, metrics=None, size=30):
    metrics = " - ".join(["{}: {:.4f}".format(m.name, m.result())
                         for m in [loss] + (metrics or [])])
    end = "" if iteration < total else "\n"
    print("\r{} - {}".format(progress_bar(iteration, total), metrics), end=end)

mean_loss = keras.metrics.Mean(name="loss")
mean_square = keras.metrics.Mean(name="mean_square")
for i in range(1, 50 + 1):
    loss = 1 / i
    mean_loss(loss)
    mean_square(i ** 2)
    print_status_bar(i, 50, mean_loss, [mean_square])
    time.sleep(0.05)

50/50 [==============================] - loss: 0.0900 - mean_square: 858.5000

keras.backend.clear_session()
np.random.seed(42)
tf.random.set_seed(42)

n_epochs = 5
batch_size = 32
n_steps = len(X_train) // batch_size
optimizer = keras.optimizers.Nadam(learning_rate=0.01)
loss_fn = keras.losses.mean_squared_error
mean_loss = keras.metrics.Mean()
metrics = [keras.metrics.MeanAbsoluteError()]

for epoch in range(1, n_epochs + 1):
    print("Epoch {}/{}".format(epoch, n_epochs))
    for step in range(1, n_steps + 1):
        X_batch, y_batch = random_batch(X_train_scaled, y_train)
        with tf.GradientTape() as tape:
            y_pred = model(X_batch)
            main_loss = tf.reduce_mean(loss_fn(y_batch, y_pred))
            loss = tf.add_n([main_loss] + model.losses)
        gradients = tape.gradient(loss, model.trainable_variables)
        optimizer.apply_gradients(zip(gradients, model.trainable_variables))
        for variable in model.variables:
            if variable.constraint is not None:
                variable.assign(variable.constraint(variable))
        mean_loss(loss)
        for metric in metrics:
            metric(y_batch, y_pred)
        print_status_bar(step * batch_size, len(y_train), mean_loss, metrics)
    print_status_bar(len(y_train), len(y_train), mean_loss, metrics)
    for metric in [mean_loss] + metrics:
        metric.reset_states()

Epoch 1/5
11610/11610 [==============================] - mean: 1.3955 - mean_absolute_error: 0.5722
Epoch 2/5
11610/11610 [==============================] - mean: 0.6774 - mean_absolute_error: 0.5280
Epoch 3/5
11610/11610 [==============================] - mean: 0.6351 - mean_absolute_error: 0.5177
Epoch 4/5
11610/11610 [==============================] - mean: 0.6384 - mean_absolute_error: 0.5181
Epoch 5/5
11610/11610 [==============================] - mean: 0.6440 - mean_absolute_error: 0.5222

try:
    from tqdm.notebook import trange
    from collections import OrderedDict
    with trange(1, n_epochs + 1, desc="All epochs") as epochs:
        for epoch in epochs:
            with trange(1, n_steps + 1, desc="Epoch {}/{}".format(epoch, n_epochs)) as steps:
                for step in steps:
                    X_batch, y_batch = random_batch(X_train_scaled, y_train)
                    with tf.GradientTape() as tape:
                        y_pred = model(X_batch)
                        main_loss = tf.reduce_mean(loss_fn(y_batch, y_pred))
                        loss = tf.add_n([main_loss] + model.losses)
                    gradients = tape.gradient(loss, model.trainable_variables)
                    optimizer.apply_gradients(zip(gradients, model.trainable_variables))
                    for variable in model.variables:
                        if variable.constraint is not None:
                            variable.assign(variable.constraint(variable))
                    status = OrderedDict()
                    mean_loss(loss)
                    status["loss"] = mean_loss.result().numpy()
                    for metric in metrics:
                        metric(y_batch, y_pred)
                        status[metric.name] = metric.result().numpy()
                    steps.set_postfix(status)
            for metric in [mean_loss] + metrics:
                metric.reset_states()
except ImportError as ex:
    print("To run this cell, please install tqdm, ipywidgets and restart Jupyter")

TensorFlow Functions

def cube(x):
    return x ** 3

cube(2)

8

cube(tf.constant(2.0))

<tf.Tensor: shape=(), dtype=float32, numpy=8.0>

tf_cube = tf.function(cube)
tf_cube

<tensorflow.python.eager.def_function.Function at 0x7fbfe0c54d50>

tf_cube(2)

<tf.Tensor: shape=(), dtype=int32, numpy=8>

tf_cube(tf.constant(2.0))

<tf.Tensor: shape=(), dtype=float32, numpy=8.0>

TF Functions and Concrete Functions

concrete_function = tf_cube.get_concrete_function(tf.constant(2.0))
concrete_function.graph

<tensorflow.python.framework.func_graph.FuncGraph at 0x7fbfd9444310>

concrete_function(tf.constant(2.0))

<tf.Tensor: shape=(), dtype=float32, numpy=8.0>

concrete_function is tf_cube.get_concrete_function(tf.constant(2.0))

True

Exploring Function Definitions and Graphs

concrete_function.graph

<tensorflow.python.framework.func_graph.FuncGraph at 0x7fbfd9444310>

ops = concrete_function.graph.get_operations()
ops

[<tf.Operation 'x' type=Placeholder>,
 <tf.Operation 'pow/y' type=Const>,
 <tf.Operation 'pow' type=Pow>,
 <tf.Operation 'Identity' type=Identity>]

pow_op = ops[2]
list(pow_op.inputs)

[<tf.Tensor 'x:0' shape=() dtype=float32>,
 <tf.Tensor 'pow/y:0' shape=() dtype=float32>]

pow_op.outputs

[<tf.Tensor 'pow:0' shape=() dtype=float32>]

concrete_function.graph.get_operation_by_name('x')

<tf.Operation 'x' type=Placeholder>

concrete_function.graph.get_tensor_by_name('Identity:0')

<tf.Tensor 'Identity:0' shape=() dtype=float32>

concrete_function.function_def.signature

name: "__inference_cube_1073862"
input_arg {
  name: "x"
  type: DT_FLOAT
}
output_arg {
  name: "identity"
  type: DT_FLOAT
}

How TF Functions Trace Python Functions to Extract Their Computation Graphs

@tf.function
def tf_cube(x):
    print("print:", x)
    return x ** 3

result = tf_cube(tf.constant(2.0))

print: Tensor("x:0", shape=(), dtype=float32)

result

<tf.Tensor: shape=(), dtype=float32, numpy=8.0>

result = tf_cube(2)
result = tf_cube(3)
result = tf_cube(tf.constant([[1., 2.]])) # New shape: trace!
result = tf_cube(tf.constant([[3., 4.], [5., 6.]])) # New shape: trace!
result = tf_cube(tf.constant([[7., 8.], [9., 10.], [11., 12.]])) # New shape: trace!

print: 2
print: 3
print: Tensor("x:0", shape=(1, 2), dtype=float32)
print: Tensor("x:0", shape=(2, 2), dtype=float32)
WARNING:tensorflow:5 out of the last 5 calls to <function tf_cube at 0x7fbfc0363440> triggered tf.function retracing. Tracing is expensive and the excessive number of tracings could be due to (1) creating @tf.function repeatedly in a loop, (2) passing tensors with different shapes, (3) passing Python objects instead of tensors. For (1), please define your @tf.function outside of the loop. For (2), @tf.function has experimental_relax_shapes=True option that relaxes argument shapes that can avoid unnecessary retracing. For (3), please refer to https://www.tensorflow.org/guide/function#controlling_retracing and https://www.tensorflow.org/api_docs/python/tf/function for  more details.

WARNING:tensorflow:5 out of the last 5 calls to <function tf_cube at 0x7fbfc0363440> triggered tf.function retracing. Tracing is expensive and the excessive number of tracings could be due to (1) creating @tf.function repeatedly in a loop, (2) passing tensors with different shapes, (3) passing Python objects instead of tensors. For (1), please define your @tf.function outside of the loop. For (2), @tf.function has experimental_relax_shapes=True option that relaxes argument shapes that can avoid unnecessary retracing. For (3), please refer to https://www.tensorflow.org/guide/function#controlling_retracing and https://www.tensorflow.org/api_docs/python/tf/function for  more details.

print: Tensor("x:0", shape=(3, 2), dtype=float32)
WARNING:tensorflow:6 out of the last 6 calls to <function tf_cube at 0x7fbfc0363440> triggered tf.function retracing. Tracing is expensive and the excessive number of tracings could be due to (1) creating @tf.function repeatedly in a loop, (2) passing tensors with different shapes, (3) passing Python objects instead of tensors. For (1), please define your @tf.function outside of the loop. For (2), @tf.function has experimental_relax_shapes=True option that relaxes argument shapes that can avoid unnecessary retracing. For (3), please refer to https://www.tensorflow.org/guide/function#controlling_retracing and https://www.tensorflow.org/api_docs/python/tf/function for  more details.

WARNING:tensorflow:6 out of the last 6 calls to <function tf_cube at 0x7fbfc0363440> triggered tf.function retracing. Tracing is expensive and the excessive number of tracings could be due to (1) creating @tf.function repeatedly in a loop, (2) passing tensors with different shapes, (3) passing Python objects instead of tensors. For (1), please define your @tf.function outside of the loop. For (2), @tf.function has experimental_relax_shapes=True option that relaxes argument shapes that can avoid unnecessary retracing. For (3), please refer to https://www.tensorflow.org/guide/function#controlling_retracing and https://www.tensorflow.org/api_docs/python/tf/function for  more details.

It is also possible to specify a particular input signature:

@tf.function(input_signature=[tf.TensorSpec([None, 28, 28], tf.float32)])
def shrink(images):
    print("Tracing", images)
    return images[:, ::2, ::2] # drop half the rows and columns

keras.backend.clear_session()
np.random.seed(42)
tf.random.set_seed(42)

img_batch_1 = tf.random.uniform(shape=[100, 28, 28])
img_batch_2 = tf.random.uniform(shape=[50, 28, 28])
preprocessed_images = shrink(img_batch_1) # Traces the function.
preprocessed_images = shrink(img_batch_2) # Reuses the same concrete function.

Tracing Tensor("images:0", shape=(None, 28, 28), dtype=float32)

img_batch_3 = tf.random.uniform(shape=[2, 2, 2])
try:
    preprocessed_images = shrink(img_batch_3)  # rejects unexpected types or shapes
except ValueError as ex:
    print(ex)

Python inputs incompatible with input_signature:
  inputs: (
    tf.Tensor(
[[[0.7413678  0.62854624]
  [0.01738465 0.3431449 ]]

 [[0.51063764 0.3777541 ]
  [0.07321596 0.02137029]]], shape=(2, 2, 2), dtype=float32))
  input_signature: (
    TensorSpec(shape=(None, 28, 28), dtype=tf.float32, name=None))

Using Autograph To Capture Control Flow

A “static” for loop using range():

@tf.function
def add_10(x):
    for i in range(10):
        x += 1
    return x

add_10(tf.constant(5))

<tf.Tensor: shape=(), dtype=int32, numpy=15>

add_10.get_concrete_function(tf.constant(5)).graph.get_operations()

[<tf.Operation 'x' type=Placeholder>,
 <tf.Operation 'add/y' type=Const>,
 <tf.Operation 'add' type=AddV2>,
 <tf.Operation 'add_1/y' type=Const>,
 <tf.Operation 'add_1' type=AddV2>,
 <tf.Operation 'add_2/y' type=Const>,
 <tf.Operation 'add_2' type=AddV2>,
 <tf.Operation 'add_3/y' type=Const>,
 <tf.Operation 'add_3' type=AddV2>,
 <tf.Operation 'add_4/y' type=Const>,
 <tf.Operation 'add_4' type=AddV2>,
 <tf.Operation 'add_5/y' type=Const>,
 <tf.Operation 'add_5' type=AddV2>,
 <tf.Operation 'add_6/y' type=Const>,
 <tf.Operation 'add_6' type=AddV2>,
 <tf.Operation 'add_7/y' type=Const>,
 <tf.Operation 'add_7' type=AddV2>,
 <tf.Operation 'add_8/y' type=Const>,
 <tf.Operation 'add_8' type=AddV2>,
 <tf.Operation 'add_9/y' type=Const>,
 <tf.Operation 'add_9' type=AddV2>,
 <tf.Operation 'Identity' type=Identity>]

A “dynamic” loop using tf.while_loop():

@tf.function
def add_10(x):
    condition = lambda i, x: tf.less(i, 10)
    body = lambda i, x: (tf.add(i, 1), tf.add(x, 1))
    final_i, final_x = tf.while_loop(condition, body, [tf.constant(0), x])
    return final_x

add_10(tf.constant(5))

<tf.Tensor: shape=(), dtype=int32, numpy=15>

add_10.get_concrete_function(tf.constant(5)).graph.get_operations()

[<tf.Operation 'x' type=Placeholder>,
 <tf.Operation 'Const' type=Const>,
 <tf.Operation 'while/maximum_iterations' type=Const>,
 <tf.Operation 'while/loop_counter' type=Const>,
 <tf.Operation 'while' type=StatelessWhile>,
 <tf.Operation 'Identity' type=Identity>]

A “dynamic” for loop using tf.range() (captured by autograph):

@tf.function
def add_10(x):
    for i in tf.range(10):
        x = x + 1
    return x

add_10.get_concrete_function(tf.constant(0)).graph.get_operations()

[<tf.Operation 'x' type=Placeholder>,
 <tf.Operation 'range/start' type=Const>,
 <tf.Operation 'range/limit' type=Const>,
 <tf.Operation 'range/delta' type=Const>,
 <tf.Operation 'range' type=Range>,
 <tf.Operation 'sub' type=Sub>,
 <tf.Operation 'floordiv' type=FloorDiv>,
 <tf.Operation 'mod' type=FloorMod>,
 <tf.Operation 'zeros_like' type=Const>,
 <tf.Operation 'NotEqual' type=NotEqual>,
 <tf.Operation 'Cast' type=Cast>,
 <tf.Operation 'add' type=AddV2>,
 <tf.Operation 'zeros_like_1' type=Const>,
 <tf.Operation 'Maximum' type=Maximum>,
 <tf.Operation 'while/maximum_iterations' type=Const>,
 <tf.Operation 'while/loop_counter' type=Const>,
 <tf.Operation 'while' type=StatelessWhile>,
 <tf.Operation 'Identity' type=Identity>]

Handling Variables and Other Resources in TF Functions

counter = tf.Variable(0)

@tf.function
def increment(counter, c=1):
    return counter.assign_add(c)

increment(counter)
increment(counter)

<tf.Tensor: shape=(), dtype=int32, numpy=2>

function_def = increment.get_concrete_function(counter).function_def
function_def.signature.input_arg[0]

name: "counter"
type: DT_RESOURCE

counter = tf.Variable(0)

@tf.function
def increment(c=1):
    return counter.assign_add(c)

increment()
increment()

<tf.Tensor: shape=(), dtype=int32, numpy=2>

function_def = increment.get_concrete_function().function_def
function_def.signature.input_arg[0]

name: "assignaddvariableop_resource"
type: DT_RESOURCE

class Counter:
    def __init__(self):
        self.counter = tf.Variable(0)

    @tf.function
    def increment(self, c=1):
        return self.counter.assign_add(c)

c = Counter()
c.increment()
c.increment()

<tf.Tensor: shape=(), dtype=int32, numpy=2>

@tf.function
def add_10(x):
    for i in tf.range(10):
        x += 1
    return x

print(tf.autograph.to_code(add_10.python_function))

def tf__add(x):
    with ag__.FunctionScope('add_10', 'fscope', ag__.ConversionOptions(recursive=True, user_requested=True, optional_features=(), internal_convert_user_code=True)) as fscope:
        do_return = False
        retval_ = ag__.UndefinedReturnValue()

        def get_state():
            return (x,)

        def set_state(vars_):
            nonlocal x
            (x,) = vars_

        def loop_body(itr):
            nonlocal x
            i = itr
            x = ag__.ld(x)
            x += 1
        i = ag__.Undefined('i')
        ag__.for_stmt(ag__.converted_call(ag__.ld(tf).range, (10,), None, fscope), None, loop_body, get_state, set_state, ('x',), {'iterate_names': 'i'})
        try:
            do_return = True
            retval_ = ag__.ld(x)
        except:
            do_return = False
            raise
        return fscope.ret(retval_, do_return)

def display_tf_code(func):
    from IPython.display import display, Markdown
    if hasattr(func, "python_function"):
        func = func.python_function
    code = tf.autograph.to_code(func)
    display(Markdown('```python\n{}\n```'.format(code)))

display_tf_code(add_10)

def tf__add(x):
    with ag__.FunctionScope('add_10', 'fscope', ag__.ConversionOptions(recursive=True, user_requested=True, optional_features=(), internal_convert_user_code=True)) as fscope:
        do_return = False
        retval_ = ag__.UndefinedReturnValue()

        def get_state():
            return (x,)

        def set_state(vars_):
            nonlocal x
            (x,) = vars_

        def loop_body(itr):
            nonlocal x
            i = itr
            x = ag__.ld(x)
            x += 1
        i = ag__.Undefined('i')
        ag__.for_stmt(ag__.converted_call(ag__.ld(tf).range, (10,), None, fscope), None, loop_body, get_state, set_state, ('x',), {'iterate_names': 'i'})
        try:
            do_return = True
            retval_ = ag__.ld(x)
        except:
            do_return = False
            raise
        return fscope.ret(retval_, do_return)

Using TF Functions with tf.keras (or Not)

By default, tf.keras will automatically convert your custom code into TF Functions, no need to use tf.function():

# Custom loss function
def my_mse(y_true, y_pred):
    print("Tracing loss my_mse()")
    return tf.reduce_mean(tf.square(y_pred - y_true))

# Custom metric function
def my_mae(y_true, y_pred):
    print("Tracing metric my_mae()")
    return tf.reduce_mean(tf.abs(y_pred - y_true))

# Custom layer
class MyDense(keras.layers.Layer):
    def __init__(self, units, activation=None, **kwargs):
        super().__init__(**kwargs)
        self.units = units
        self.activation = keras.activations.get(activation)

    def build(self, input_shape):
        self.kernel = self.add_weight(name='kernel',
                                      shape=(input_shape[1], self.units),
                                      initializer='uniform',
                                      trainable=True)
        self.biases = self.add_weight(name='bias',
                                      shape=(self.units,),
                                      initializer='zeros',
                                      trainable=True)
        super().build(input_shape)

    def call(self, X):
        print("Tracing MyDense.call()")
        return self.activation(X @ self.kernel + self.biases)

keras.backend.clear_session()
np.random.seed(42)
tf.random.set_seed(42)

# Custom model
class MyModel(keras.models.Model):
    def __init__(self, **kwargs):
        super().__init__(**kwargs)
        self.hidden1 = MyDense(30, activation="relu")
        self.hidden2 = MyDense(30, activation="relu")
        self.output_ = MyDense(1)

    def call(self, input):
        print("Tracing MyModel.call()")
        hidden1 = self.hidden1(input)
        hidden2 = self.hidden2(hidden1)
        concat = keras.layers.concatenate([input, hidden2])
        output = self.output_(concat)
        return output

model = MyModel()

model.compile(loss=my_mse, optimizer="nadam", metrics=[my_mae])

model.fit(X_train_scaled, y_train, epochs=2,
          validation_data=(X_valid_scaled, y_valid))
model.evaluate(X_test_scaled, y_test)

Epoch 1/2
Tracing MyModel.call()
Tracing MyDense.call()
Tracing MyDense.call()
Tracing MyDense.call()
Tracing loss my_mse()
Tracing metric my_mae()
Tracing MyModel.call()
Tracing MyDense.call()
Tracing MyDense.call()
Tracing MyDense.call()
Tracing loss my_mse()
Tracing metric my_mae()
340/363 [===========================>..] - ETA: 0s - loss: 2.8762 - my_mae: 1.2771Tracing MyModel.call()
Tracing MyDense.call()
Tracing MyDense.call()
Tracing MyDense.call()
Tracing loss my_mse()
Tracing metric my_mae()
363/363 [==============================] - 1s 1ms/step - loss: 2.7755 - my_mae: 1.2455 - val_loss: 0.5569 - val_my_mae: 0.4819
Epoch 2/2
363/363 [==============================] - 0s 802us/step - loss: 0.4697 - my_mae: 0.4911 - val_loss: 0.4664 - val_my_mae: 0.4576
162/162 [==============================] - 0s 469us/step - loss: 0.4164 - my_mae: 0.4639

[0.4163525104522705, 0.4639028012752533]

You can turn this off by creating the model with dynamic=True (or calling super().__init__(dynamic=True, **kwargs) in the model’s constructor):

keras.backend.clear_session()
np.random.seed(42)
tf.random.set_seed(42)

model = MyModel(dynamic=True)

model.compile(loss=my_mse, optimizer="nadam", metrics=[my_mae])

Not the custom code will be called at each iteration. Let’s fit, validate and evaluate with tiny datasets to avoid getting too much output:

model.fit(X_train_scaled[:64], y_train[:64], epochs=1,
          validation_data=(X_valid_scaled[:64], y_valid[:64]), verbose=0)
model.evaluate(X_test_scaled[:64], y_test[:64], verbose=0)

Tracing MyModel.call()
Tracing MyDense.call()
Tracing MyDense.call()
Tracing MyDense.call()
Tracing loss my_mse()
Tracing metric my_mae()
Tracing MyModel.call()
Tracing MyDense.call()
Tracing MyDense.call()
Tracing MyDense.call()
Tracing loss my_mse()
Tracing metric my_mae()
Tracing MyModel.call()
Tracing MyDense.call()
Tracing MyDense.call()
Tracing MyDense.call()
Tracing loss my_mse()
Tracing metric my_mae()
Tracing MyModel.call()
Tracing MyDense.call()
Tracing MyDense.call()
Tracing MyDense.call()
Tracing loss my_mse()
Tracing metric my_mae()
Tracing MyModel.call()
Tracing MyDense.call()
Tracing MyDense.call()
Tracing MyDense.call()
Tracing loss my_mse()
Tracing metric my_mae()
Tracing MyModel.call()
Tracing MyDense.call()
Tracing MyDense.call()
Tracing MyDense.call()
Tracing loss my_mse()
Tracing metric my_mae()

[5.507260322570801, 2.0566811561584473]

Alternatively, you can compile a model with run_eagerly=True:

keras.backend.clear_session()
np.random.seed(42)
tf.random.set_seed(42)

model = MyModel()

model.compile(loss=my_mse, optimizer="nadam", metrics=[my_mae], run_eagerly=True)

model.fit(X_train_scaled[:64], y_train[:64], epochs=1,
          validation_data=(X_valid_scaled[:64], y_valid[:64]), verbose=0)
model.evaluate(X_test_scaled[:64], y_test[:64], verbose=0)

Tracing MyModel.call()
Tracing MyDense.call()
Tracing MyDense.call()
Tracing MyDense.call()
Tracing loss my_mse()
Tracing metric my_mae()
Tracing MyModel.call()
Tracing MyDense.call()
Tracing MyDense.call()
Tracing MyDense.call()
Tracing loss my_mse()
Tracing metric my_mae()
Tracing MyModel.call()
Tracing MyDense.call()
Tracing MyDense.call()
Tracing MyDense.call()
Tracing loss my_mse()
Tracing metric my_mae()
Tracing MyModel.call()
Tracing MyDense.call()
Tracing MyDense.call()
Tracing MyDense.call()
Tracing loss my_mse()
Tracing metric my_mae()
Tracing MyModel.call()
Tracing MyDense.call()
Tracing MyDense.call()
Tracing MyDense.call()
Tracing loss my_mse()
Tracing metric my_mae()
Tracing MyModel.call()
Tracing MyDense.call()
Tracing MyDense.call()
Tracing MyDense.call()
Tracing loss my_mse()
Tracing metric my_mae()

[5.507260322570801, 2.0566811561584473]

Custom Optimizers

Defining custom optimizers is not very common, but in case you are one of the happy few who gets to write one, here is an example:

class MyMomentumOptimizer(keras.optimizers.Optimizer):
    def __init__(self, learning_rate=0.001, momentum=0.9, name="MyMomentumOptimizer", **kwargs):
        """Call super().__init__() and use _set_hyper() to store hyperparameters"""
        super().__init__(name, **kwargs)
        self._set_hyper("learning_rate", kwargs.get("lr", learning_rate)) # handle lr=learning_rate
        self._set_hyper("decay", self._initial_decay) #
        self._set_hyper("momentum", momentum)

    def _create_slots(self, var_list):
        """For each model variable, create the optimizer variable associated with it.
        TensorFlow calls these optimizer variables "slots".
        For momentum optimization, we need one momentum slot per model variable.
        """
        for var in var_list:
            self.add_slot(var, "momentum")

    @tf.function
    def _resource_apply_dense(self, grad, var):
        """Update the slots and perform one optimization step for one model variable
        """
        var_dtype = var.dtype.base_dtype
        lr_t = self._decayed_lr(var_dtype) # handle learning rate decay
        momentum_var = self.get_slot(var, "momentum")
        momentum_hyper = self._get_hyper("momentum", var_dtype)
        momentum_var.assign(momentum_var * momentum_hyper - (1. - momentum_hyper)* grad)
        var.assign_add(momentum_var * lr_t)

    def _resource_apply_sparse(self, grad, var):
        raise NotImplementedError

    def get_config(self):
        base_config = super().get_config()
        return {
            **base_config,
            "learning_rate": self._serialize_hyperparameter("learning_rate"),
            "decay": self._serialize_hyperparameter("decay"),
            "momentum": self._serialize_hyperparameter("momentum"),
        }

keras.backend.clear_session()
np.random.seed(42)
tf.random.set_seed(42)

model = keras.models.Sequential([keras.layers.Dense(1, input_shape=[8])])
model.compile(loss="mse", optimizer=MyMomentumOptimizer())
model.fit(X_train_scaled, y_train, epochs=5)

Epoch 1/5
363/363 [==============================] - 0s 444us/step - loss: 4.9648
Epoch 2/5
363/363 [==============================] - 0s 444us/step - loss: 1.7888
Epoch 3/5
363/363 [==============================] - 0s 437us/step - loss: 1.0021
Epoch 4/5
363/363 [==============================] - 0s 451us/step - loss: 0.7869
Epoch 5/5
363/363 [==============================] - 0s 446us/step - loss: 0.7122

<tensorflow.python.keras.callbacks.History at 0x7fbfe0a94d50>

Exercises

1. to 11.

See Appendix A.

12. Implement a custom layer that performs Layer Normalization

We will use this type of layer in Chapter 15 when using Recurrent Neural Networks.

a.

Exercise: The build() method should define two trainable weights α and β, both of shape input_shape[-1:] and data type tf.float32. α should be initialized with 1s, and β with 0s.

Solution: see below.

b.

Exercise: The call() method should compute the mean μ and standard deviation σ of each instance’s features. For this, you can use tf.nn.moments(inputs, axes=-1, keepdims=True), which returns the mean μ and the variance σ² of all instances (compute the square root of the variance to get the standard deviation). Then the function should compute and return α⊗(X - μ)/(σ + ε) + β, where ⊗ represents itemwise multiplication (*) and ε is a smoothing term (small constant to avoid division by zero, e.g., 0.001).

class LayerNormalization(keras.layers.Layer):
    def __init__(self, eps=0.001, **kwargs):
        super().__init__(**kwargs)
        self.eps = eps

    def build(self, batch_input_shape):
        self.alpha = self.add_weight(
            name="alpha", shape=batch_input_shape[-1:],
            initializer="ones")
        self.beta = self.add_weight(
            name="beta", shape=batch_input_shape[-1:],
            initializer="zeros")
        super().build(batch_input_shape) # must be at the end

    def call(self, X):
        mean, variance = tf.nn.moments(X, axes=-1, keepdims=True)
        return self.alpha * (X - mean) / (tf.sqrt(variance + self.eps)) + self.beta

    def compute_output_shape(self, batch_input_shape):
        return batch_input_shape

    def get_config(self):
        base_config = super().get_config()
        return {**base_config, "eps": self.eps}

Note that making ε a hyperparameter (eps) was not compulsory. Also note that it’s preferable to compute tf.sqrt(variance + self.eps) rather than tf.sqrt(variance) + self.eps. Indeed, the derivative of sqrt(z) is undefined when z=0, so training will bomb whenever the variance vector has at least one component equal to 0. Adding ε within the square root guarantees that this will never happen.

c.

Exercise: Ensure that your custom layer produces the same (or very nearly the same) output as the keras.layers.LayerNormalization layer.

Let’s create one instance of each class, apply them to some data (e.g., the training set), and ensure that the difference is negligeable.

X = X_train.astype(np.float32)

custom_layer_norm = LayerNormalization()
keras_layer_norm = keras.layers.LayerNormalization()

tf.reduce_mean(keras.losses.mean_absolute_error(
    keras_layer_norm(X), custom_layer_norm(X)))

<tf.Tensor: shape=(), dtype=float32, numpy=5.6045884e-08>

Yep, that’s close enough. To be extra sure, let’s make alpha and beta completely random and compare again:

random_alpha = np.random.rand(X.shape[-1])
random_beta = np.random.rand(X.shape[-1])

custom_layer_norm.set_weights([random_alpha, random_beta])
keras_layer_norm.set_weights([random_alpha, random_beta])

tf.reduce_mean(keras.losses.mean_absolute_error(
    keras_layer_norm(X), custom_layer_norm(X)))

<tf.Tensor: shape=(), dtype=float32, numpy=2.2921004e-08>

Still a negligeable difference! Our custom layer works fine.

13. Train a model using a custom training loop to tackle the Fashion MNIST dataset

The Fashion MNIST dataset was introduced in Chapter 10.

a.

Exercise: Display the epoch, iteration, mean training loss, and mean accuracy over each epoch (updated at each iteration), as well as the validation loss and accuracy at the end of each epoch.

(X_train_full, y_train_full), (X_test, y_test) = keras.datasets.fashion_mnist.load_data()
X_train_full = X_train_full.astype(np.float32) / 255.
X_valid, X_train = X_train_full[:5000], X_train_full[5000:]
y_valid, y_train = y_train_full[:5000], y_train_full[5000:]
X_test = X_test.astype(np.float32) / 255.

keras.backend.clear_session()
np.random.seed(42)
tf.random.set_seed(42)

model = keras.models.Sequential([
    keras.layers.Flatten(input_shape=[28, 28]),
    keras.layers.Dense(100, activation="relu"),
    keras.layers.Dense(10, activation="softmax"),
])

n_epochs = 5
batch_size = 32
n_steps = len(X_train) // batch_size
optimizer = keras.optimizers.Nadam(learning_rate=0.01)
loss_fn = keras.losses.sparse_categorical_crossentropy
mean_loss = keras.metrics.Mean()
metrics = [keras.metrics.SparseCategoricalAccuracy()]

with trange(1, n_epochs + 1, desc="All epochs") as epochs:
    for epoch in epochs:
        with trange(1, n_steps + 1, desc="Epoch {}/{}".format(epoch, n_epochs)) as steps:
            for step in steps:
                X_batch, y_batch = random_batch(X_train, y_train)
                with tf.GradientTape() as tape:
                    y_pred = model(X_batch)
                    main_loss = tf.reduce_mean(loss_fn(y_batch, y_pred))
                    loss = tf.add_n([main_loss] + model.losses)
                gradients = tape.gradient(loss, model.trainable_variables)
                optimizer.apply_gradients(zip(gradients, model.trainable_variables))
                for variable in model.variables:
                    if variable.constraint is not None:
                        variable.assign(variable.constraint(variable))
                status = OrderedDict()
                mean_loss(loss)
                status["loss"] = mean_loss.result().numpy()
                for metric in metrics:
                    metric(y_batch, y_pred)
                    status[metric.name] = metric.result().numpy()
                steps.set_postfix(status)
            y_pred = model(X_valid)
            status["val_loss"] = np.mean(loss_fn(y_valid, y_pred))
            status["val_accuracy"] = np.mean(keras.metrics.sparse_categorical_accuracy(
                tf.constant(y_valid, dtype=np.float32), y_pred))
            steps.set_postfix(status)
        for metric in [mean_loss] + metrics:
            metric.reset_states()

b.

Exercise: Try using a different optimizer with a different learning rate for the upper layers and the lower layers.

keras.backend.clear_session()
np.random.seed(42)
tf.random.set_seed(42)

lower_layers = keras.models.Sequential([
    keras.layers.Flatten(input_shape=[28, 28]),
    keras.layers.Dense(100, activation="relu"),
])
upper_layers = keras.models.Sequential([
    keras.layers.Dense(10, activation="softmax"),
])
model = keras.models.Sequential([
    lower_layers, upper_layers
])

lower_optimizer = keras.optimizers.SGD(learning_rate=1e-4)
upper_optimizer = keras.optimizers.Nadam(learning_rate=1e-3)

n_epochs = 5
batch_size = 32
n_steps = len(X_train) // batch_size
loss_fn = keras.losses.sparse_categorical_crossentropy
mean_loss = keras.metrics.Mean()
metrics = [keras.metrics.SparseCategoricalAccuracy()]

with trange(1, n_epochs + 1, desc="All epochs") as epochs:
    for epoch in epochs:
        with trange(1, n_steps + 1, desc="Epoch {}/{}".format(epoch, n_epochs)) as steps:
            for step in steps:
                X_batch, y_batch = random_batch(X_train, y_train)
                with tf.GradientTape(persistent=True) as tape:
                    y_pred = model(X_batch)
                    main_loss = tf.reduce_mean(loss_fn(y_batch, y_pred))
                    loss = tf.add_n([main_loss] + model.losses)
                for layers, optimizer in ((lower_layers, lower_optimizer),
                                          (upper_layers, upper_optimizer)):
                    gradients = tape.gradient(loss, layers.trainable_variables)
                    optimizer.apply_gradients(zip(gradients, layers.trainable_variables))
                del tape
                for variable in model.variables:
                    if variable.constraint is not None:
                        variable.assign(variable.constraint(variable))
                status = OrderedDict()
                mean_loss(loss)
                status["loss"] = mean_loss.result().numpy()
                for metric in metrics:
                    metric(y_batch, y_pred)
                    status[metric.name] = metric.result().numpy()
                steps.set_postfix(status)
            y_pred = model(X_valid)
            status["val_loss"] = np.mean(loss_fn(y_valid, y_pred))
            status["val_accuracy"] = np.mean(keras.metrics.sparse_categorical_accuracy(
                tf.constant(y_valid, dtype=np.float32), y_pred))
            steps.set_postfix(status)
        for metric in [mean_loss] + metrics:
            metric.reset_states()
